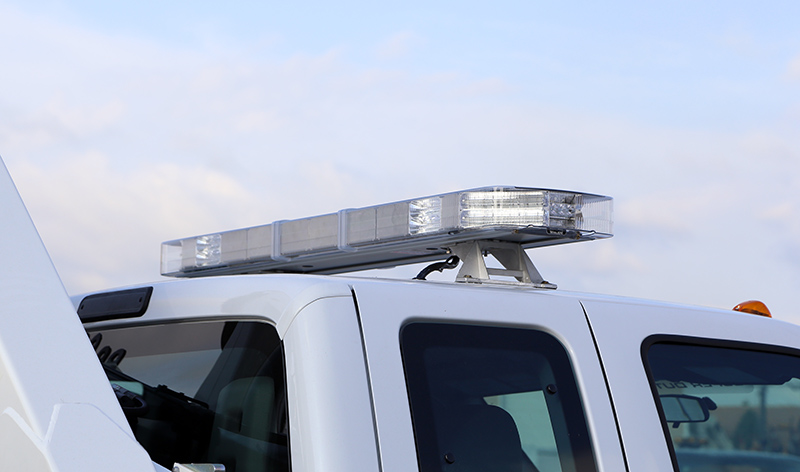

Edge® Freedom® IV F4W WeCan® Series Super-LED® Lightbars

Whelen's new Freedom IV Series features advanced Linear Super-LED optics, all new DYAD™ two level technology, and 360° of contiguous light.

Height without mounting feet: 3-3/4" (94mm), width is 12-1/2" (318mm)
• Standard lengths: 44-1/2" (113cm), 49-3/4" (126cm), 55" (140cm), 60" (152cm), 72" (183cm)

WeCan® Models
• F4W4**** 44-1/2" (113cm)
• F4W8**** 49-1/4" (125cm)
• F4W2**** 55" (140cm)
• F4W0**** 60" (152cm)
• F4W7**** 72" (183cm)


• Linear Super-LED technology
• WeCan® DYAD two level technology (single or two color) allows for individual control of each level of each lighthead
• Low Current DYAD two level technology (single color) allows for individual control of each lighthead segment (2x2)
• Advanced Thermal Design reduces the stress on LEDs during extended dwell time
• Center dividers with LIM (Liquid Injection Molded) seals protect internal components from water infiltration
• Each model has one or two sealing points, assuring lightbar integrity in all weather conditions
• Hard-coated lenses minimize environmental damage from the sun, salt, and road chemicals
• 100% solid-state electronics
• Point to point wiring between the I/O board and each lighthead allows for easy reconfiguration
• Newly designed corner modules blend light together for 360° of contiguous light
• Whelen™s Collimator™ patented optic design provides unbeaten light output
• WeCan models are programmable with unlimited flash patterns
• Plug & Play into Whelen or vehicle manufactured controllers (WeCan only)
• Optional Photocell automatically dims the lightbar at night while still meeting SAE Class 1 requirements
• Add up to 16 optional Linear
• Super-LED directional modules
• 17 foot passenger side cable

• Five year warranty

• Rear DYAD Traffic Advisor™
• Take-downs available in three or six Super-LED modules
• Alley lights available in three or six
• Super-LED modules
• Two LED brake/tail/turn lights
• vPioneer™ lightbar mount
• Color filters available for full customization
• Go undercover with all new,
• SAE Class 1 certified smoked lenses and dividers
• Alternate center section models available in all models over 55"

• Color domes for center and end sections with optional alley window
• Single color or DUO+ color interleaved double reflector lighthead for rear center mount
• GTT LED emitter available with or without take-downs
• Strobe reflector available with or without take-downs
• Smoked center domes available
