Fireray 50R/100R Datasheet (European) PDF

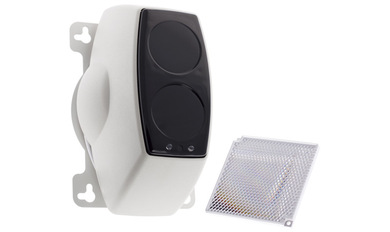

The Fireray® 50R/100R series of reflective infrared optical beam smoke detectors are comprised of a single unit incorporating an infrared Transmitter and Receiver. The signal is reflected by a prism and analysed for smoke presence. The system is designed to be mounted so that the beam will project between 0.3 and 0.6 metres below and parallel to the ceiling. Lateral detection may be up to 7.5 metres either side of the beam.
- Single Compact Housing
- Area coverage 50 metre or 100 metre model available
- 12-24 Vdc Operation
- Low current Consumption
- Robust Construction
- Conforms to: BS5839 Part 5 and EN54 part 12, UL and VdS
The Fireray® 50R/100R series of reflective infrared optical beam smoke detectors provide economical and effective protection of large, open plan spaces with high ceilings, particularly if access to ‘point type’ smoke detectors presents practical difficulties.
